Austenitic Naadloze Ronde Vorm van de Roestvrij staalbuis voor Warmtewisselaars
Basis eigenschappen
Plaats van herkomst:
Zhejiang, China
Merknaam:
TORICH
Certificering:
ISO9001, ISO14001, ISO16949
Modelnummer:
GB/T30073
Handelsgoederen
Minimale bestelhoeveelheid:
5tons
Prijs:
onderhandelbaar
Betalingsvoorwaarden:
Bevestigingsbrief, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:
50000tons per jaar
Productoverzicht
TORICH GB/T30073 Naadloos austenitisch roestvrij staal buisje voor warmtewisselaars StandaardGB/T30073 Materiaal:0Cr19Ni10, 022Cr19Ni10, 022Cr19Ni10N, 06Cr17Ni12Mo2, 022Cr17Ni12Mo2,022Cr17Ni12Mo2N, 06Cr18Ni11Ti Overdosis:10-76 mm WT:0.7-4.0 mm Gebruik: Warmtewisselaars in kerncentrales Buisvorm: U...
Productdetails
Markeren:
roestvast stalen ronde buis
,roestvrij buisstaal
Product Name:
Naadloze Austenitic het Roestvrije staalbuis van TORICH voor Warmtewisselaars
Keyword:
Stainless Steel Tube
Standard:
GB/T30073
Material:
06Cr19Ni10,022Cr19Ni10,022Cr19Ni10N, 06Cr17Ni12Mo2,022Cr17Ni12Mo2
Section Shape:
Ronde vorm
Tube Shape:
U Buis
Surface:
Pools
OD:
1076mm
WT:
0.74.0mm
Usage:
Warmtewisselaars in kernenergieinstallatie
Productbeschrijving
TORICH GB/T30073 Naadloos austenitisch roestvrij staal buisje voor warmtewisselaars
StandaardGB/T30073
Materiaal:0Cr19Ni10, 022Cr19Ni10, 022Cr19Ni10N, 06Cr17Ni12Mo2,
022Cr17Ni12Mo2,022Cr17Ni12Mo2N, 06Cr18Ni11Ti
Overdosis:10-76 mm
WT:0.7-4.0 mm
Gebruik: Warmtewisselaars in kerncentrales

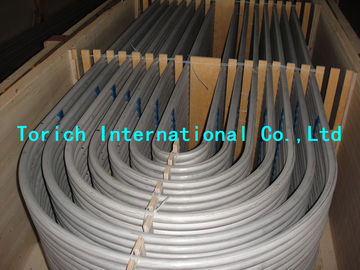

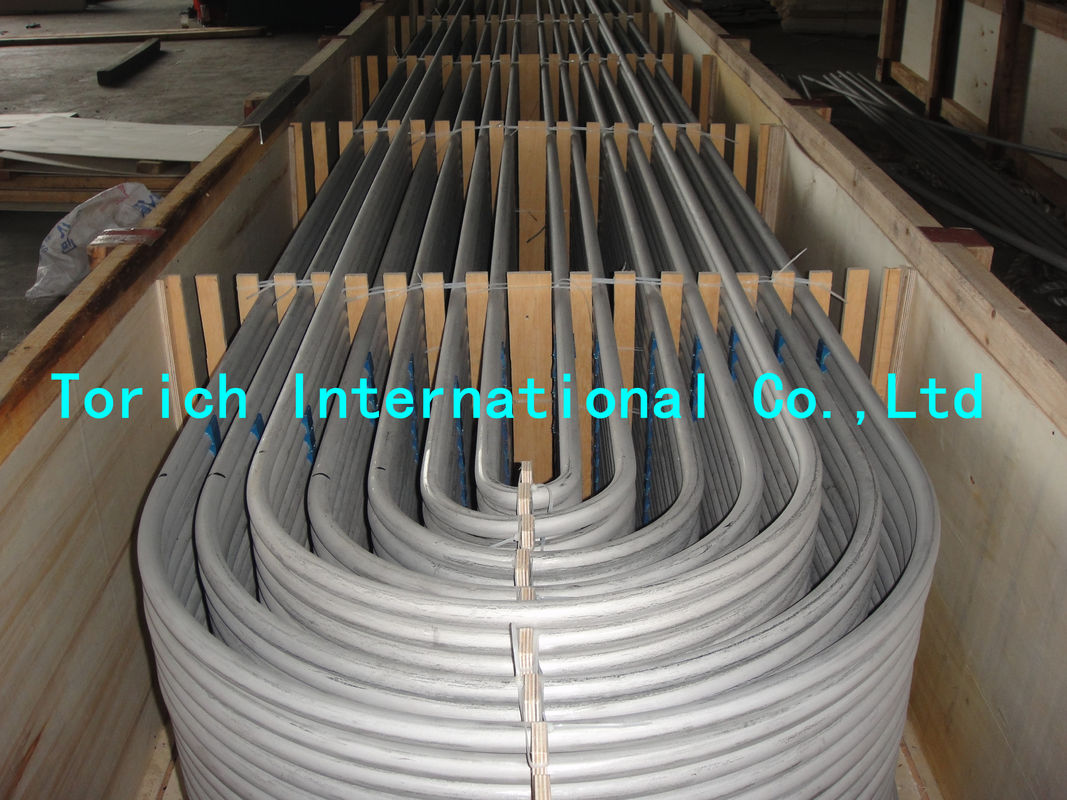

Buisvorm: U-buis
Chemische samenstelling:
| Graad | Eenvormige nummercode | Chemische samenstelling % | |||||||||||
| C | - Jawel. | Deeltjes | P | S | Cr | Ni | Mo. | C. | B. | N | Ti | ||
| 06Cr19Ni10 | S30408 | 0.06 | 0.75 | 2.00 | 0.030 | 0.015 | 17.00-20.00 | 9.00-12.00 | - | 1.00 | 0.0018 | - | - |
| 022Cr19Ni10 | S30403 | 0.030 | 0.75 | 2.00 | 0.030 | 0.015 | 18.00-20.00 | 9.00-12.00 | - | 1.00 | 0.0018 | - | - |
| 022Cr19Ni10N | S30453 | 0.035 | 1.00 | 2.00 | 0.030 | 0.015 | 18.50-20.00 | 9.00-10.00 | - | 1.00 | 0.0018 | 0.08 | - |
| 06Cr17Ni12Mo2 | S31608 | 0.07 | 0.75 | 2.00 | 0.030 | 0.015 | 17.00-19.00 | 10.00-14.00 | 2.00-2.50 | 1.00 | 0.0018 | - | - |
| 022Cr17Ni12Mo2 | S31603 | 0.030 | 0.75 | 2.00 | 0.030 | 0.015 | 17.00-19.00 | 10.00-14.00 | 2.00-2.50 | 1.00 | 0.0018 | - | - |
| 022Cr17Ni12Mo2N | S31653 | 0.035 | 1.00 | 2.00 | 0.030 | 0.015 | 17.00-18.00 | 11.50-12.50 | 2.25-2.75 | 1.00 | 0.0018 | 0.08 | - |
| 06Cr18Ni11Ti | S32168 | 0.08 | 1.00 | 2.00 | 0.030 | 0.015 | 17.00-19.00 | 9.00-12.00 | - | 1.00 | 0.0018 | - | 5C-0.70 |
Mechanische eigenschappen:
| Materiaal | Eenvormige nummercode
|
Ruimtemperatuur trekkracht
| 350°C Hoogtemperatuur trekvastheid
| ||||
| plasticiteit, verlengsterkte MPa | Tensile sterkte MPa | Verlenging % | plasticiteit, verlengsterkte MPa | Tensile sterkte MPa | Verlenging % | ||
| 06Cr19Ni10 | S30408 | 210 | 520 | 45 | 125 | 394 | 7.93 |
| 022Cr19Ni10 | S30403 | 175 | 490 | 45 | 105 | 350 | 7.90 |
| 022Cr19Ni10N | S30453 | 220 | 520 | 45 | 125 | 394 | 7.93 |
| 06Cr17Ni12Mo2 | S31608 | 210 | 520 | 45 | 130 | 445 | 8.00 |
| 022Cr17Ni12Mo2 | S31603 | 175 | 490 | 45 | 105 | 355 | 8.00 |
| 022Cr17Ni12Mo2N | S31653 | 220 | 520 | 45 | 130 | 400 | 8.04 |
| 06Cr18Ni11Ti | S32168 | 210 | 520 | 35 | 125 | 394 | 8.03 |
TORICH GB/T30073 Naadloos austenitisch roestvrij staal buis voor warmtewisselaars in kerncentrales
