warmtewisselaarbuizen

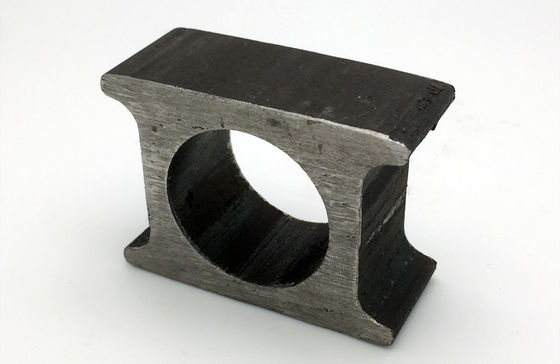

20G Naadloze Stalen Omega Buis voor Hoogdrukketeldienst met Koudgetrokken Proces
20G naadloze omega-buizen van ketelkwaliteit voor hogedruktoepassingen. Koudgetrokken voor nauwkeurige afmetingen, gecertificeerd volgens GB/T 5310 (vergelijkbaar met ASTM A192/A210). Aangepaste lengtes van 1-12 m met nauwe toleranties. Gebouwd voor efficiëntie van warmteoverdracht en drukintegriteit.

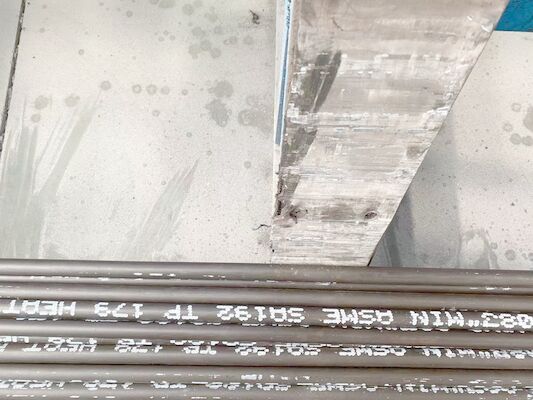

SA179 ST35.8 Warmtewisselaars
SA179 ST35.8 Mild Seamless Steel Round Pipe Thick Wall Pipe Boiler Chemcial Fertilizer Material: Low Carbon Steel Production: Seamless Cold Drawn Size range: O.D.:3.2-76.2mm W.T.:1-15mm L: according to customer requirement. Steel Grade and Chemical Compositions: C 0.06-0.18 Mn 0.27-0.63 P ≤0.035 S ≤0.035 Mechanical Properties Tensile Streghth: min ksi[Mpa] 47[325] Yield Point: min ksi[Mpa] 26[180] Elongation: ≥35% Hardness: ≤72HRB Heat Treatment: Tubes are heat treated after
ASTM een 179 Maximum Buis van de de Vinvin van de KoolstofstaalWarmtewisselaar Buizen Uitgedreven 18 Meters
Fin Tube Type and Material No. Fin Type Fin Material Tube Material 1 Extruded Fin Fin Tube SB209 - B209 Aluminium Alloy 1050 or 1060 SB75 - B75 Copper SA179 - A179 Carbon Steel SA213 - A213 Stainless Steel SB75 - B75 Copper SB111 - B111 Copper Alloy 2 G Fin Fin Tube / Embeded Fin Tube EN573-3 Aluminium Alloy 1050 or 1060 SB152 - B152 Copper 3 L Fin Fin Tube 4 LL Fin Fin Tube 5 KL Fin Fin Tube Fin Tube Details Tube O.D 8-51mm Wall Thickness Please advice Length Usually ≤12mtr
De Warmtewisselaarbuizen ASTM A178 van het precisie Lage Koolstofstaal Die voor Boilerpijp worden gelast
TORICH Low carbon steel Precision ASTM A178 Welded and Drawn Boiler Tubes 1. Available Size Range: OD Thickness mm inch mm SCH 88.9~1422 3'~ 56' 2.11~140 ≥SCH10 *If the steel grades and size you are looking for are not listed above, please contact us for further information . 2. Application Power plant; Chemical Fertilizer; Petrochemicals; Offshore Oils; Gas Productions; Refineries and etc. 3. Standards ASTM A106 ——Standard Specification for Seamless Carbon Steel Pipe for
De naadloze Buizen van de KoolstofstaalWarmtewisselaar voor Hydraulische/Vloeibare Pijp
4130 Seamless Steel tube/pipe for Hydraulic Pipe Fluid Pipe Product Seamless Steel Tube Material Carbon Steel/ Alloy Steel Section Shape Round Grade 10#(St37.4,St35,St37,E235),20#(St45,St44,E255),45#(Ck45),16Mn(St52) and other special material. Standard DIN2391,EN10305-1,GB/T3639 Certification ISO9001 Technique Cold rolled & Cold drawn Application Widely used in automobiles, motorcycles, gas springs, hydraulic machinery, construction machinery and refrigeration industry.
ASME SA213 Klasse T12 Interne draad naadloze laaggelegeerde warmtewisselaarbuis met Cr-Mo-ontwerp en 30-325 mm OD
ASME SA213 Grade T12 Internal Thread Tube — Seamless Low-Alloy Tube for Heat Exchangers Material Overview ASME SA213 Grade T12 (UNS K11562) is a seamless chromium–molybdenum (Cr-Mo) low-alloy steel tube widely specified for boiler, superheater, and heat-exchanger service where elevated-temperature strength and pressure integrity are required. The ASME SA-213 specification is the Code adoption of ASTM A213/A213M for these seamless alloy-steel tubing applications. Specification
ASTM A213 naadloos buisje van legeringsstaal met grote diameter, dikwandige ketelbuis voor warmtewisselaars
ASTM A213 Alloy Steel Seamless Pipe (Tube) — Large Diameter, Thick-Wall for Boiler Service Material ASTM A213/A213M covers seamless ferritic and austenitic alloy-steel tubes intended for boilers, superheaters, and heat exchangers . Tubes are supplied as hot-finished or cold-finished , and can be specified with the heat-treatment condition required for high-temperature pressure parts. (Reference: ASTM A213/A213M) Specifications Manufacturing : Seamless; hot-finished or cold

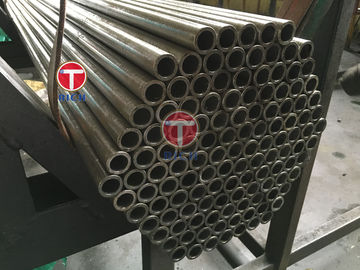

180 Mpa Naadloze ASTM A179 OD 420mm Koudgewalste Pijp
Torich ASTM A179 OD 420mm 24mm High Precision Seamless Steel Tube Cold Rolled Steel Pipe Brief introduction: Name A179 OD 420mm 24mm High Precision Seamless Steel Tube Cold Rolled Steel Pipe Standard ASTM A79 Production method Cold drawn Section shape Round OD 5-420mm WT 0.5-50mm Length Max12000mm Application Boilers, supreheaters, heat exchangers, condenser, U bend tubes according to customer request Mechanical properties Tensile strength:325Mpa Elongation: ≥35 % Hardness:

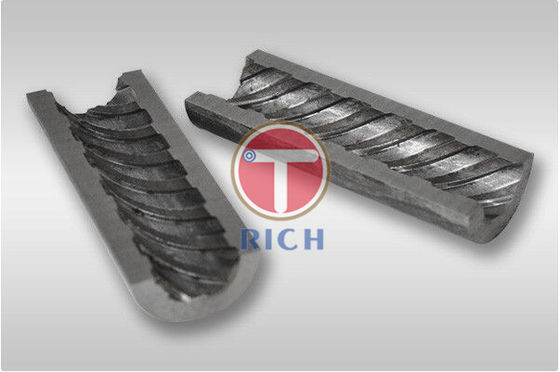

Geribde buis met verbeterde warmteoverdrachtsefficiëntie, anti-filmvorming en uniforme wandtemperatuur voor toepassingen bij hoge temperaturen
8 Inner Ribbed Tube SA210C / A1 SA213 T2 28.6X6.2 38.1X7.5 63.5X7.5 66.7X8 Inner-Ribbed Seamless Steel Tube for High-Efficiency Heat Transfer Inner-ribbed seamless steel tubes (also known as internally threaded tubes) are precision cold-drawn or cold-rolled tubes engineered to enhance heat transfer efficiency in high-temperature environments. By forming continuous spiral ribs on the inner wall, these tubes significantly improve fluid turbulence, reduce steam film formation,
