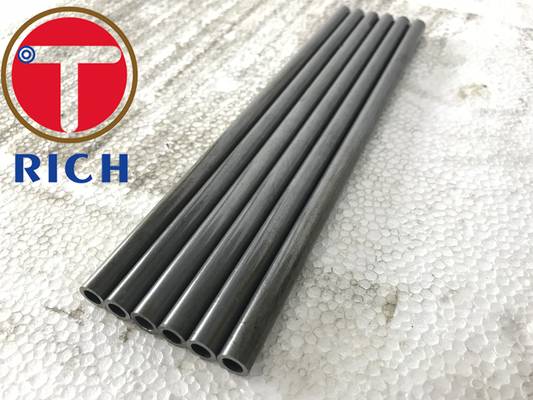

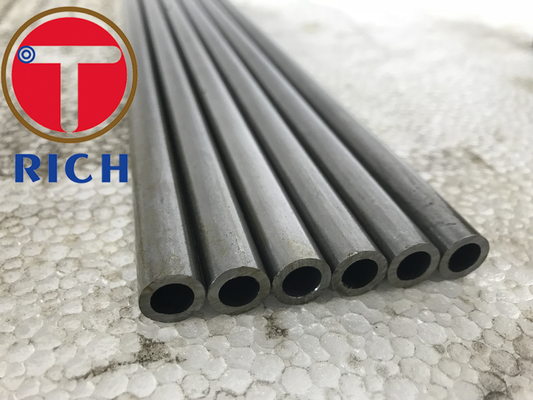

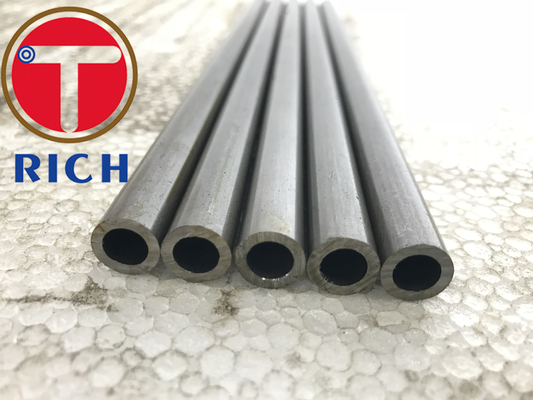

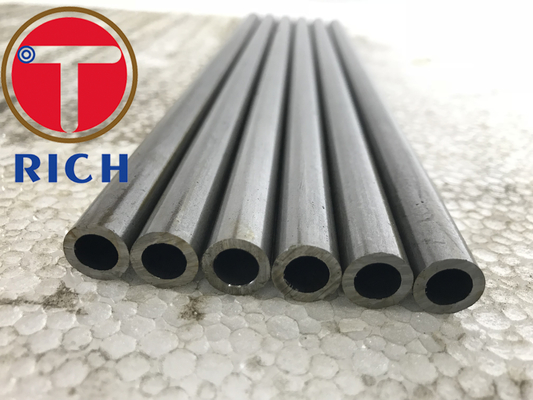

Astm A179 A106 1mm de dik Naadloze Pijp van de Staalboiler
Basis eigenschappen
Plaats van herkomst:
ZheJiang CHINA
Merknaam:
TORICH
Certificering:
ISO 9001
Modelnummer:
ASTM A179
Handelsgoederen
Minimale bestelhoeveelheid:
1 ton
Prijs:
USD 1350-1500 Per Ton
Betalingsvoorwaarden:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:
500 Ton per Maand
Productoverzicht
ASTM A179 A106 naadloze stalen buizen, ketelbuizen en warmtewisselaars StandaardASTM A179 naadloze koudgetrokken koolstofarme stalen buizen Toepassingen:Voor ketels, superverwarmers, warmtewisselaars, condensatoren Productiemethode:Naadloos koud getrokken Grootte:5-420mm W.T.:0.5-50 mm L:max12000 mm ...
Productdetails
Markeren:
astm pijp van de het staalboiler van a179 de naadloze
,1mm de dikke naadloze pijp van de staalboiler
,astm de warmtewisselaarbuizen van a106
Type:
Naadloos
Application:
Warmtewisselaar, boiler
Certification:
ISO
Standard:
ASTM
Thickness:
1mm-40mm
Outer Diameter:
6630mm
Productbeschrijving
ASTM A179 A106 naadloze stalen buizen, ketelbuizen en warmtewisselaars
StandaardASTM A179 naadloze koudgetrokken koolstofarme stalen buizen
Toepassingen:Voor ketels, superverwarmers, warmtewisselaars, condensatoren
Productiemethode:Naadloos koud getrokken
Grootte:5-420mm W.T.:0.5-50 mm L:max12000 mm
WT Tolerantie:+/- 0,15 mm
Leveringsvoorwaarden:+Cc +LCc +SR +Ad +N NBK
Staalklasse en chemische samenstelling:
| C | 0.06-0.18 |
| Deeltjes | 0.27-0.63 |
| P | ≤ 0.035 |
| S | ≤ 0.035 |
Mechanische eigenschappen
| Treksterkte | Min ksi ((Mpa) 47 ((325) |
| Het rendementpunt | Min ksi ((Mpa) 26 ((180) |
| Verlenging | ≥ 35% |
| Hardheid | ≤ 72 HRB |
