Heldere Gebeëindigde Opgepoetste 4130 4140 Hydraulische Ck45 C45E Harde Chrome Ronde de Bar/Staal Bar van 42CrMo4 QT/Zuigerstang
Productdetails
4140 Staal Ronde Bar
,4130 Staal Ronde Bar
,De Ronde Bar van het Torichstaal

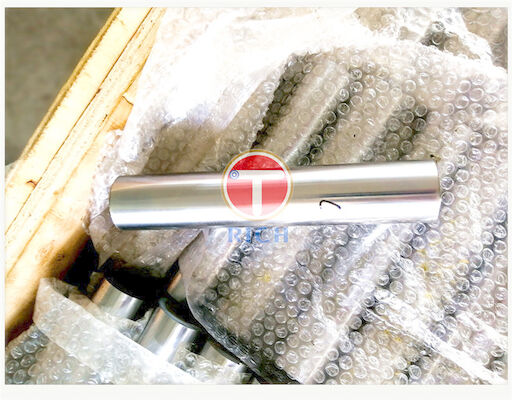

TORICH helder afgewerkt gepolijst 4130 4140 42CrMo4 QT Hydraulisch Ck45 C45E Hardchroom ronde staaf/staalstaaf/kolvenstaaf
Overdosis:6-300 mm
Lange1 tot 9 m
Materiaal:CK45/ST52/20MnV6/42CrMo/40Cr/Lagerstaal/roestvrij staal/4140 4130 45# 1045 S45C GCr15
Chroomdikte:20-30 micron
Hardheid van de chroomlaag:800HV ((min)
Warmtebehandeling:QT-ontglijden
Recht:0.2/1000 mm
Ruwe oppervlakte:Ra 0,2 micron (max)
Oppervlaktecoating: hardchroomd
Tolerantief7
Vermogen van het rendement:≥ 350 Mpa
Treksterkte:≥580Mpa
Verlenging:≥15%
Verschaffingstoestand:1.Hard gechroomd
2.Inductie gehard
3.Gekrompen en getemperd
4.Inductiegehard met Q&T
Beschrijving:
Materiaal
| Materiaal | C% | Mn% | Si% | S% | P% | V% | Cr% |
| Ck45 | 0.42-0.50 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 |
| ≤ 0.25 |
| ST52 | ≤ 0.22 | ≤ 1.6 | ≤ 0.55 | ≤ 0.04 | ≤ 0.04 | 0.02-0.15 |
|
| 20MnV6 | 0.17-0.24 | 1.30-1.70 | 0.10-0.50 | ≤ 0.035 | ≤ 0.035 | 0.10-0.20 | ≤ 0.30 |
| 42CrMo4 | 0.38-0.45 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 | 0.07-0.12 | 0.90-1.20 |
| 40Cr | 0.37-0.45 | 0.50-0.80 | 0.17-0.37 | ≤ 0.035 | ≤ 0.035 |
| 0.80-1.10 |
4. Mechanische eigenschappen
| Materiaal | T.S. N/MM2 | Y.S. N/MM2 | E% ((MIN) | CHARPY | Voorwaarde |
| CK45 | 610 | 355 | 15 | > 41J | NORMALIZE |
| CK45 | 800 | 630 | 20 | > 41J | Q + T |
| ST52 | 500 | 355 | 22 |
| NORMALIZE |
| 20MnV6 | 750 | 590 | 12 | > 40 J | NORMALIZE |
| 42CrMo4 | 980 | 850 | 14 | > 47J | Q + T |
| 40Cr | 1000 | 800 | 10 |
| Q + T |
Kenmerken
Hoge tolerantie
Kleine hoeveelheid beschikbaar
Op maat gemaakt volgens de opdracht van de klant
Toepassing:
Hydraulische, pneumatische, lineaire as, bouwmachines, kunststofmachines, verpakkingsmachines, drukmachines, machineas, inwendige beweging.
Verpakking:
katoenen houten dozen.
-
