Koudgetrokken Vloeistaalss304 Haarvat voor Medisch
Productdetails
SS304 medisch Haarvat
,Vloeistaal Haarvat
,Koudgetrokken Capillaire Vloeistaalbuis
Kapillaire buis van mild staal SS304 Kapillaire buis
StandaardASTM, ASME, EN, JIS, DIN, GB/T, enz.
staalklasse:304 ((0Cr18Ni9), 304L ((00Cr18Ni10), 316 ((0Cr17Ni12Mo2), 316L ((0Cr17Ni14Mo2), 321, 409, 409L, 430
Grootte:OD 0,28-10 mm WT 0,08 mm Lengte≤ 500 mm Of in een spoel
Tolerantie:OD+/- 0,01 mm,WT+/- 0,01 mm,L +/- 0,1 mm
Oppervlaktebehandeling: polijsten, anelen, spiegeloppervlak, helder, picklen
Toepassing: medische behandeling, aardolie, luchtvaart, medische apparatuur, airconditioning, chemische industrie, elektronica, accessoires, voedselmachines, elektriciteitsopwekking,farmaceutische en andere gebieden.
| 201 | 202 | 304 | 316 | S31803 | S32750 | ||
| Chemische samenstelling ((%) | C | ≤ 0.15 | ≤ 0.15 | ≤ 0.08 | ≤ 0.08 | ≤ 0.030 | ≤ 0.030 |
| - Jawel. | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 1.00 | ≤ 0.80 | |
| Deeltjes | 5.5-7.5 | 7.5-10.0 | ≤ 2.00 | ≤ 2.00 | ≤ 2.00 | ≤ 1.20 | |
| P | ≤ 0.060 | ≤ 0.060 | ≤ 0.045 | ≤ 0.045 | ≤ 0.030 | ≤ 0.035 | |
| S | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.030 | ≤ 0.020 | ≤ 0.020 | |
| Cr | 16 tot 18 | 17-19 | 18 tot 20 | 16 tot 18 | 21-23 | 21-23 | |
| Ni | 3.5-5.5 | 4.0-6.0 | 8.0-10.5 | 16.0-18.5 | 4.5-6.5 | 6.0-8.0 | |
| Mo. |
|
|
| 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |
| N | ≤ 0.25 | ≤ 0.25 |
|
| 0.08-0.2 | 0.24-0.32 | |
| C. |
|
|
|
|
| ≤ 0.50 | |
| Mechanische eigenschappen | Tensile sterkte ((MPa) | ≥ 655 | ≥ 620 | ≥ 515 | ≥ 515 | ≥ 620 | ≥ 800 |
| Vermogen om te vliegen (MPa) | ≥ 260 | ≥ 310 | ≥205 | ≥205 | ≥ 450 | ≥ 550 | |
| Verlenging ((%) | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 35 | ≥ 25 | ≥ 15 | |
| Hardheid ((HV) | ≤ 230 | ≤ 230 | ≤ 200 | ≤ 200 | ≤ 303 | ≤ 323 | |

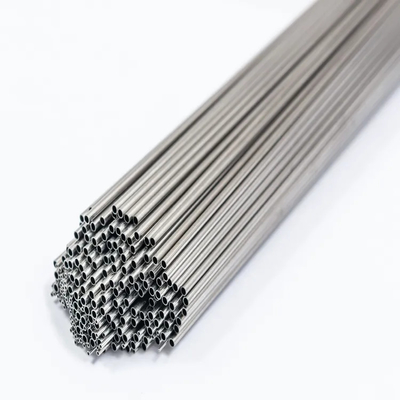

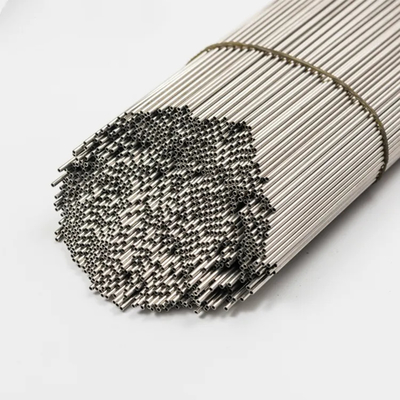

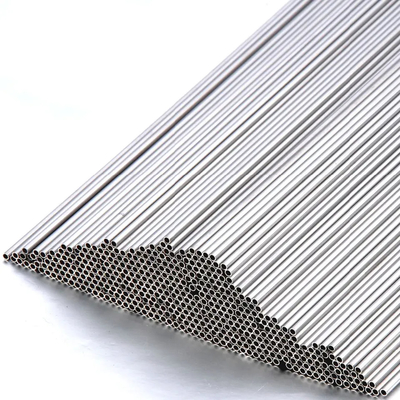

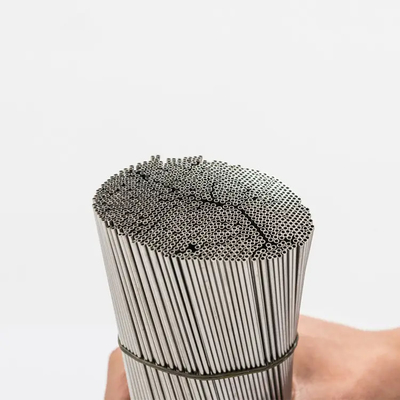

Foto's van het product
Productieproces van gelaste buizen van roestvrij staal:
Grondstof - slib - laspijp - trimmen - polijsten - inspectie (sprayprinting) - verpakking - verzending (opslag) (decoratief gelast buis). Raw material - Slitting - Welding pipe Heat treatment - Correction - Straightening - End trimming - Pickling - Water pressure test - Inspection (printing) - Packaging - Shipping (warehouse) (Pipe for industrial piping of welded pipe).

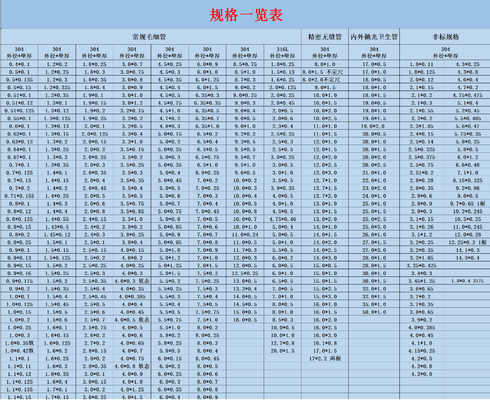

Regelmatige maten die wij kunnen leveren
Certificaat
De lof van de klant
1.0*0.1 en 0.8*0.1 Kapillaire buizen met een superkleine diameter voor medische doeleinden
-
