Hete de papierfabricage/walste 316 Roestvrij staalblad koud
Basis eigenschappen
Plaats van herkomst:
China
Merknaam:
Torich
Certificering:
ISO9001
Handelsgoederen
Minimale bestelhoeveelheid:
1ton
Betalingsvoorwaarden:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Productoverzicht
Warm/koud gewalst 316 roestvrij staalplaat Naam Platen van roestvrij staal Type Plaat/plaat Dikte 0.2-5 mm Breedte 600-2000 mm Lange 2000-8000 mm Graad ((ASTM/UNS) 201,304,304L,321,316,316L,317L,347H,309S,310S,904L,S32205,2507, 254SMOS,32760,253MA,N08926 Graad ((EN) 1.4301,1.4307,1.4541,1.4401,1...
Productdetails
Markeren:
koudgewalst 316 roestvrij staalblad
,papierfabricage 316 roestvrij staalblad
,warmgewalst roestvrij blad 316
Steel Grade:
316L, 316, 321, 410S, 304, 304l
Tolerance:
±1%
Type:
Plaat
MOQ:
1ton
Grade:
300 Reeksen
Length:
2000--8000mm
Width:
600-2000 mm
Thickness:
0,2--5mm
Productbeschrijving

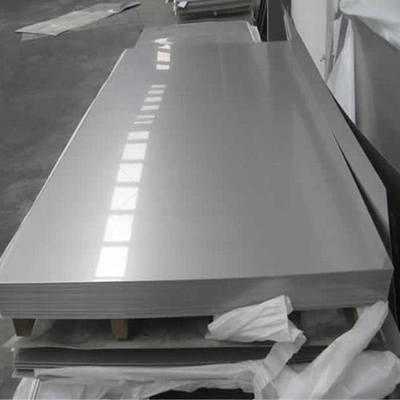

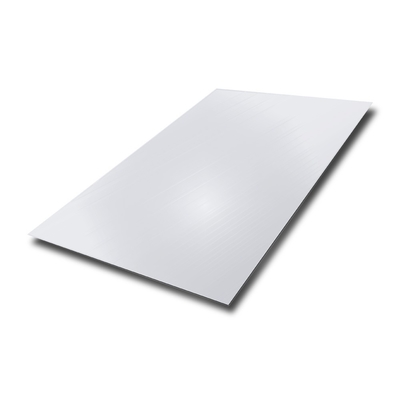

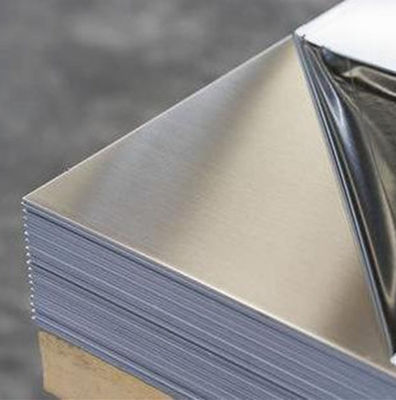

Warm/koud gewalst 316 roestvrij staalplaat
| Naam | Platen van roestvrij staal |
| Type | Plaat/plaat |
| Dikte | 0.2-5 mm |
| Breedte | 600-2000 mm |
| Lange | 2000-8000 mm |
| Graad ((ASTM/UNS) | 201,304,304L,321,316,316L,317L,347H,309S,310S,904L,S32205,2507, 254SMOS,32760,253MA,N08926 |
| Graad ((EN) | 1.4301,1.4307,1.4541,1.4401,1.4404,1.4571,1.4438,1.4539,1.4547,1.4529, 1.4562,1.4410,1.4878,1.4845,1.4828,1.4876,2.4858,2.4819 |
Chemische samenstellingen
| - Nee, niet echt. | Graad ((EN) | Graad (ASTM/UNS) | C | N | Cr | Ni | Mo. | Andere |
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
| 15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
| 16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0,8-1.0 |
| 17 | 1.4529 | N08926 legering 25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
| 18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3,5-6,5 Nb 0.05 |
| 19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3,5-6,5 Nb 0,3-0.6 |
| 20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0,1-0.8 |
| 21 | 1.4362 | S32304/2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
| 22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
| 23 | 1.4410 | S32750/2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
| 24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0,5-1,0 Cu 0,5-1.0 |
| 25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
| 26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
| 27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0,03-0.08 |
| 28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
| 29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1,4-2,0 Ce 0,03-0.08 |
| 30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
| 31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Toepassing:
gebruikt voor filterelementen, geneesmiddelen, papiervervaardiging, filtratie, veredeling, batterijnet, verpakking
netto, mechanische bescherming van installaties, ambachtelijke productie, hoogwaardige luidspreker netbedekking
decoratie, kinderzitje, mandje Koffer en wegbescherming, olietank, autopedaalnet
werkplatform, roltrap en loopbrug van zware machines ketel, oliebron
locomotief en schip van 10000 ton, alsmede de bouwindustrie, snelwegbrug als versterking
