ASTM A789 Super Duplex 2507 buis koud getrokken roestvrijstalen buis voor petrochemie
Contact Persoon : Richard SHEN
Telefoonnummer : +86-13736164628
WhatsApp : +8613736164628
Min. bestelaantal : | 0.3tons | Prijs : | negotiable |
---|---|---|---|
Verpakking Details : | In woondozen. | Levertijd : | 5-8 wekendagen |
Betalingscondities : | L/C, T/T | Levering vermogen : | 5000tons per jaar |
Plaats van herkomst: | China | Merknaam: | Torich |
---|---|---|---|
Certificering: | IS09001 ISO14001 TS16949 | Modelnummer: | A269 A213 A312 |
Gedetailleerde informatie |
|||
norm: | ASTM | Techniek: | Gebeëindigde koude |
---|---|---|---|
Toepassing: | Hydraulische cilinder | Sectievorm: | Ronde |
Lengte: | De Eis van de klant | Productnaam: | ETH-staven 1,4301 AISI 304 de naadloze koude gebeëindigde buis van het grondroestvrije staal |
Hoog licht: | aisi 304 naadloze roestvrij staalbuis,1.4301 naadloze roestvrij staalbuis,precisie naadloos buisstaal |
Productomschrijving

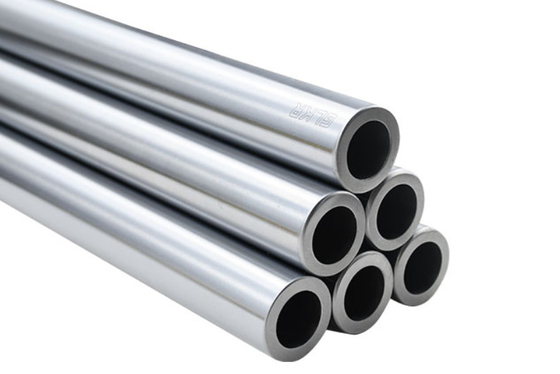

ETH-staven 1,4301 AISI 304 de naadloze koude gebeëindigde buis van het grondroestvrije staal
Materiaal: 1.4301 (ANSI 304)
Treksterkte Rm min 500MPa
Elastricgrens Rp0.2 min 200MPa
Tolerantie van OD H8. H9
Tolerantie van identiteitskaart H8 H9
Staafstraighness ≤0.2mm/1000mm 0.3mm/1000mm
Grootte: 22X2 283 45X5 70X4.85 85X7.5mm
Lengte Willekeurige lengte
1.4301:
Treksterkte σb (MPa) | ≥515-1035 |
Voorwaardelijke opbrengststerkte σ0.2 (MPa) | ≥205 |
Verlenging δ5 (%) | ≥40 |
Vermindering van gebied ψ (%) | ≥? |
Hardheid: | ≤201HBW; ≤92HRB; ≤210HV |
Dichtheid (20℃, g/cm ³): | 7.93 |
Smeltpunt (℃): | 1398~1454 |
Specifieke hittecapaciteit | (0~100℃, kJ·kg-1K-1): 0,50 |
Warmtegeleidingsvermogen (W·m-1·K-1): | (100℃) 16,3, (500℃) 21,5 |
Lineaire uitbreidingscoëfficiënt (10-6·K-1): | (0~100℃) 17,2, (0~500℃) 18,4 |
Weerstandsvermogen (20℃, 10-6Ω·m2/m): | 0,73 |
Longitudinale elastische modulus (20℃, KN/mm2): | 193 |
Productnormen |
