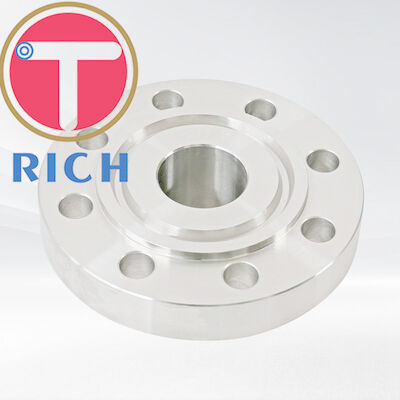

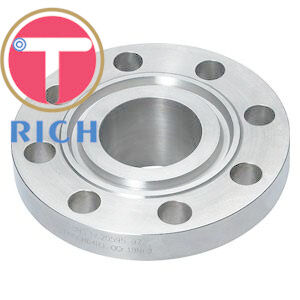

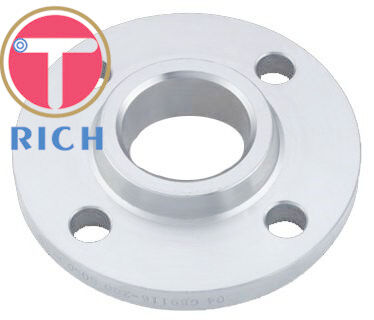

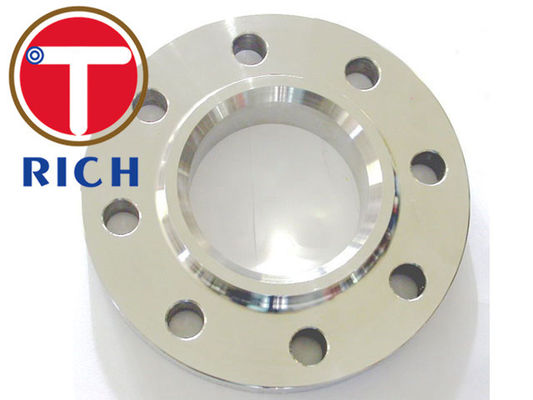

Legering niet 15 NB 8 Blinde Vlakke ANSI B16.47 van de Gezichtsflens
Basis eigenschappen
Plaats van herkomst:
ZHEJIANG CHINA
Merknaam:
TORICH
Certificering:
ISO 9001
Modelnummer:
304 316
Handelsgoederen
Minimale bestelhoeveelheid:
10 PCs
Prijs:
USD 3-5 PER PC
Betalingsvoorwaarden:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Toeleveringsvermogen:
50000000 PCs per Maand
Productoverzicht
ANSI B16.47 SERIES A & B 1/2" 15 NB tot 48" 1200NB SERIES BLIND FLANGE Type: WN Flange,Dus Flange,LJ Flange,LWN Flange,SW Flange,Orifice Flange,Vermindering Flange,Figuur 8 blind (blank&Spacer)Speciale flens: volgens de tekening Afmetingen: ANSI B16.47 serie A & B Grootte: 1/2" (15 NB) tot 48" (1200 ...
Productdetails
Markeren:
Flens van het Legerings niet de Vlakke Gezicht
,15 NB Vlakke Gezichtsflens
,8 blinde Vlakke Gezichtsflens
Design For Size:
ASA, ASME, DIN, PN, JIS, ANSI, BS, EN
Product Name:
Vlakke het Gezichtsflens van ASME B16.5
Keyword:
Vlakke Flens
Alloy Or Not:
Non-alloy
Productbeschrijving
ANSI B16.47 SERIES A & B 1/2" 15 NB tot 48" 1200NB SERIES BLIND FLANGE
Type:
WN Flange,
Dus Flange,
LJ Flange,
LWN Flange,
SW Flange,
Orifice Flange,
Vermindering Flange,
Figuur 8 blind (blank&Spacer)
Speciale flens: volgens de tekening
- Afmetingen: ANSI B16.47 serie A & B
- Grootte: 1/2" (15 NB) tot 48" (1200 NB)
- Klasse: 150 pond, 300 pond, 600 pond, 900 pond, 1500 pond, 2500 pond.
- Normen: ASME B16.47 en ANSI B16.47
- Flanktype: platte flank (FF), opgeheven flank (RF), ringgewricht (RTJ)
| Nom. Pijp Grootte | Buiten - Zwijg. | Ik heb geen idee. | Overdosis van Opgegroeid Gezicht | Hub Diam. | Lange Door middel van Hub | Gewicht (lbs) | Boringen | ||||
| - Ik ben de baas. Neck | Blind | - Ik ben de baas. Neck | - Ik ben de baas. Neck | Blind | Nee, gaten. | - Zwijg. Gaten | Boltcirkel - Zwijg. | ||||
| O | C | C | R | X | Y1 | ||||||
| 26 | 34.25 | 2.69 | 2.69 | 29.50 | 26.62 | 4.75 | 300 | 702 | 24 | 1.38 | 31.75 |
| 28 | 36.50 | 2.81 | 2.81 | 31.50 | 28.62 | 4.94 | 345 | 833 | 28 | 1.38 | 34 |
| 30 | 38.75 | 2.94 | 2.94 | 33.75 | 30.75 | 5.38 | 400 | 982 | 28 | 1.38 | 36 |
| 32 | 41.75 | 3.19 | 3.19 | 36 | 32.75 | 5.69 | 505 | 1238 | 28 | 1.62 | 38.50 |
| 34 | 43.75 | 3.25 | 3.25 | 38 | 34.75 | 5.88 | 540 | 1384 | 32 | 1.62 | 40.50 |
| 36 | 46 | 3.56 | 3.56 | 40.25 | 36.75 | 6.19 | 640 | 1676 | 32 | 1.62 | 42.75 |
| 38 | 48.75 | 3.44 | 3.44 | 42.25 | 39 | 6.19 | 720 | 1819 | 32 | 1.62 | 45.25 |
| 40 | 50.75 | 3.56 | 3.56 | 44.25 | 41 | 6.44 | 775 | 2040 | 36 | 1.62 | 47.25 |
| 42 | 53 | 3.81 | 3.81 | 47 | 43 | 6.75 | 890 | 2380 | 36 | 1.62 | 49.50 |
| 44 | 55.25 | 4 | 4 | 49 | 45 | 7 | 990 | 2715 | 40 | 1.62 | 51.75 |
| 46 | 57.25 | 4.06 | 4.06 | 51 | 47.12 | 7.31 | 1060 | 2961 | 40 | 1.62 | 53.75 |
| 48 | 59.50 | 4.25 | 4.25 | 53.50 | 49.12 | 7.56 | 1185 | 3350 | 44 | 1.62 | 56 |
| 50 | 61.75 | 4.38 | 4.38 | 55.50 | 51.25 | 8 | 127 | 3716 | 44 | 1.88 | 58.25 |
| 52 | 64 | 4.56 | 4.56 | 57.50 | 53.25 | 8.25 | 1410 | 4156 | 44 | 1.88 | 60.25 |
| 54 | 66.25 | 4.75 | 4.75 | 59.50 | 55.25 | 8.50 | 1585 | 4636 | 44 | 1.88 | 62.75 |
| 56 | 68.75 | 4.88 | 4.88 | 62 | 57.38 | 9 | 1760 | 5130 | 48 | 1.88 | 65 |
| 58 | 71 | 5.06 | 5.06 | 64 | 59.38 | 9.25 | 1915 | 5675 | 48 | 1.88 | 67.25 |
| 60 | 73 | 5.19 | 5.19 | 66 | 61.38 | 9.44 | 2353 | 6155 | 52 | 1.88 | 69.25 |
