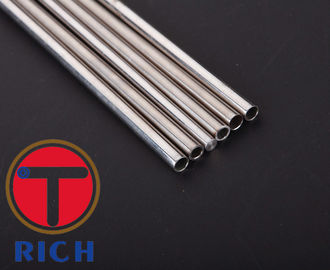

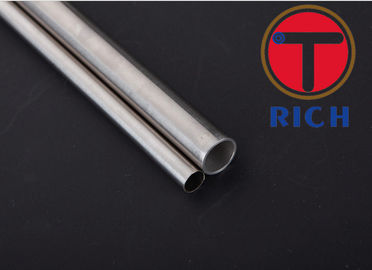

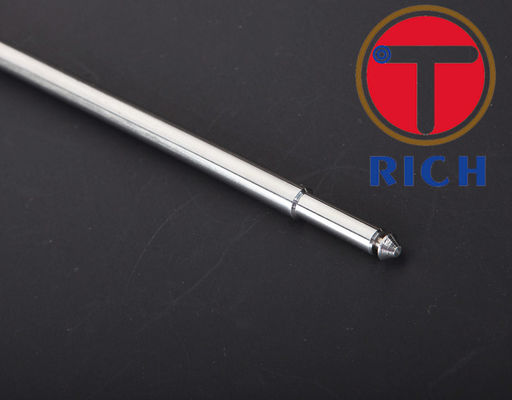

Het Roestvrije staal Naadloze Buis van de voedselindustrie 2 - 12m X5CrNi1810 X2CrNiMo18143
Productdetails
roestvrij buisstaal
,de buis van het grote diameterroestvrije staal
DIN 11850 Roestvrij staal buizen voor de voedingsindustrie afmetingen,materialen
Materiaal:
X5CrNi1810 - materiaal nummer 1.4301
X6CrNiMoTi17122 - materiaal nummer 1.4571
X6CrNiMo17122 - materiaal nummer 1.4401
X2CrNiMo18143 - materiaal nummer 1.4435
X6CrNiTi1810 - materiaal nummer 1.4541
Minimale bestelhoeveelheid: 5 MT
Betalingsvoorwaarden: L/C of T/T
Voorzieningscapaciteit: 700 MT/maand
Levertijd: FOB, CFR, CIF zijn haalbaar
30 tot 60 dagen, afhankelijk van de hoeveelheid
TABEL 1 Afmetingen en toelaatbare afwijkingen van de leidingen
| Nominale | Reeks | Tolerantie | Gewicht | opmerking | ||||
| 1 | 2 | 3 | OD.dev | Wanddikte, dev. | ||||
| 10 | 12 |
|
| ±0.12 | 1.0 | ± 10% | 0.27 | Buizen met een grotere wanddikte dan volgens serie 1 worden geselecteerd uit bestaande buizennormen voor dit nominale diameterbereik. |
|
| 13 |
| ±0.3 | 1.5 | ± 10% | 0.43 | ||
|
|
| 14 | ±0.3 | 2.0 | ± 10% | 0.60 | ||
| 15 | 18 |
|
| ±0.12 | 1.0 | ± 10% | 0.42 | |
|
| 19 |
| ±0.3 | 1.5 | ± 10% | 0.66 | ||
|
|
| 20 | ±0.3 | 2.0 | ± 10% | 0.90 | ||
| 20 | 22 |
|
| ±0.12 | 1.0 | ± 10% | 0.51 | |
|
| 23 |
| ±0.3 | 1.5 | ± 10% | 0.81 | ||
|
|
| 24 | ±0.3 | 2.0 | ± 10% | 1.10 | ||
| 25 | 28 |
|
| ±0.15 | 1.0 | ± 10% | 0.66 | |
|
| 29 |
| ± 1% | 1.5 | ± 10% | 1.03 | ||
|
|
| 30 | ±0.3 | 2.0 | ± 10% | 1.40 | ||
| 32 | 34 |
|
| ±0.15 | 1.0 | ± 10% | 0.82 | |
|
| 35 |
| ± 1% | 1.5 | ± 10% | 1.26 | ||
|
|
| 36 | ± 1% | 2.0 | ± 10% | 1.70 | ||
| 40 | 40 |
|
| ±0.2 | 1.0 | ± 10% | 0.97 | |
|
| 41 |
| ± 1% | 1.5 | ± 10% | 1.50 | ||
|
|
| 42 | ± 1% | 2.0 | ± 10% | 2.00 | ||
| 50 | 52 |
|
| ±0.2 | 1.0 | C10% | 1.26 | |
|
| 53 |
| ± 1% | 1.5 | ± 10% | 1.90 | ||
|
|
| 54 | ± 1% | 2.0 | ± 10% | 2.60 | ||
| 65 | 70 |
|
| ±0.3 | 2.0 | ± 10% | 3.43 | |
| 80 | 85 |
|
| ±0.3 | 2.0 | ± 10% | 4.16 | |
| 100 | 104 |
|
| ±0.3 | 2.0 | ± 10% | 5.03 | |
| 125 | 129 |
|
| ±0.4 | 2.0 | ± 10% | 6.36 | |
| 150 | 154 |
|
| ±0.4 | 2.0 | ± 10% | 7.49 | |
Geciteerde normen:
DIN 2413 Stalen buizen Berekening van de wanddikte om de interne druk te weerstaan
DIN 17456 Naadloze cirkelvormige roestvrijstalen buizen voor algemene eisen technische specificaties
Certificaten voor materiaalonderzoek volgens DIN 50049
-
