Duurzame Telescopische Cilinder Koudgetrokken Naadloze Buis OD 120400mm

Basisinformatie
Plaats van herkomst: China
Merknaam: Torich
Certificering: ISO 9001-2008 ISO14001 TS16949 DNV
Modelnummer: GB/T3639、 GB/T8713、 EN10305-1: 2002、 en10305-2: 2002、 ASTM A519-2006、 ASTM A513-2007、 GB/T15912008 G
Min. bestelaantal: 5MT
Prijs: USD1200-1500 Per ton
Verpakking Details: oliebescherming in bundels of in kartondozen of houten dozen
Levertijd: 30-45 dagen
Betalingscondities: L / C, T / T
Levering vermogen: 6000MT/month
Gedetailleerde informatie
Type:: Hydraulische Cilinderbuis Materiaal:: 20#、 45#、 Q345B、 Q345D、 25Mn、 27SiMn、 E355
O.D.: 40400mm W.T.: ≥5mm
Techniek:: De koude trekt Legering of niet:: Non-alloy
Lengte: Tot 12000mm volgens de eis van de klant Plaats van herkomst: Zhejiang, China (Vasteland)
Oppervlaktebehandeling: Als vereiste klant
Hoog licht:

geslepen hydraulische cilinderbuis

,

Hydraulische Cilinderpijp


Productomschrijving



Duurzame Telescopische Cilinder Koudgetrokken Naadloze Buis OD 40400mm







Materiaal: 20#, 45#, Q345B, Q345D, 25Mn, 27SiMn, E355



 Pneumatische Cilinderbuis Hydraulische Cylilnder-Buis

Identiteitskaart mm

OD mm

Dikte (mm)

Unitweigh
 (kg/m)

Identiteitskaart mm

OD mm

Dikte (mm)

Unitweigh
 (kg/m)
90 100 5 11.71 50 60 5 6.78
50 63 6.5 9.06
100 110 5 12.95 50 65 7.5 10.63
50 70 10 14.8
125 135 5 16.03 56 66 5 7.52
60 70 5 8.01
140 152 6 21.6 60 73 6.5 10.66
60 80 10 17.26
150 160 5 19.11 63 76 6.5 11.14
63 80 8.5 14.99
160 170 5 20.34 63 83 10 18
65 75 5 8.63
160 172 6 24.56 65 80 7.5 13.41
70 80 5 9.25
180 194 7 32.28 70 83 6.5 12.26
70 86 8 15.39
200 214 7 35.73 70 90 10 19.73
75 90 7.5 15.26
200 216 8 41.03 75 95 10 20.96
80 93 6.5 13.87
200 219 9.5 49.08 80 95 7.5 16.18
80 100 10 22.19
250 266 8 50.9 80 102 11 24.68
80 108 14 32.45
250 273 11.5 74.16 85 98 6.5 14.67
85 100 7.5 17.11
300 320 10 76.45 85 105 10 23.43
90 102 6 14.2
320 340 10 81.38 90 105 7.5 18.03
90 108 9 21.97
400 426 13 132.4 90 110 10 24.66
90 114 12 30.18



High-precision Koudgetrokken die staalbuis voor hydraulische cilinder en pneumatische cilinder wordt gebruikt

 Hydraulische Cylilnder-Buis  Hydraulische Cylilnder-Buis

Identiteitskaart mm

OD mm

Dikte (mm)

Unitweigh
 (kg/m)

Identiteitskaart mm

OD mm
Dikte (mm)
Unitweigh
 (kg/m)
100 115 7.5 19.88 140 178 19 74.5
100 118 9 24.19 150 168 9 35.29
100 121 10.5 28.61 150 170 10 39.46
100 127 13.5 37.79 150 175 12.5 50.09
110 127 8.5 24.84 150 180 15 61.03
110 130 10 25.59 160 180 10 41.92
110 133 11.5 34.46 160 184 12 50.9
110 140 15 46.24 160 188 14 60.07
115 131 8 24.27 160 190 15 64.73
115 135 10 30.83 160 194 17 74.2
115 138 11.5 35.87 170 203 16.5 75.88
115 140 12.5 39.3 175 194 9.5 43.22
120 135 7.5 23.58 180 200 10 46.85
120 140 10 32.06 180 203 11.5 54.31
120 142 11 35.54 180 210 15 72.13
120 146 13 42.64 180 214 17 82.59
125 140 7.5 24.51 180 219 19.5 95.93
125 146 10.5 35.09 200 225 12.5 65.5
125 148 11.5 38.71 200 230 15 79.53
125 150 12.5 42.38 200 235 17.5 93.86
125 152 13.5 46.11 200 245 22.5 123.45
125 156 15.5 53.7 220 250 15 86.93
125 159 17 59.53 220 273 26.5 161.09
130 152 11 38.25 250 280 15 98.02
130 156 13 45.84 250 299 24.5 165.84
130 160 15 53.64 280 325 22.5 167.84
135 160 12.5 45.47 280 351 35.5 276.2
140 160 10 36.99 300 351 25.5 204.68
140 163 11.5 42.96 300 377 38.5 321.38
140 166 13 49.05 320 351 15.5 128.24
140 168 14 53.17 320 377 28.5 244.93





  Inchingrootte van buis (Eenheid: duim)

  Identiteitskaart 1 1/2“ 2“ 2 1/2“ 3“ 3 1/2“
  Identiteitskaart 4“ 5“ 6“  /  /





Koud-trek buizen voor telescopische cilinders

De gelaste koude trekt de Specificatie van de staalbuis En10305-2
        Rang & Voorwaarde E355+SR
              Y.S ≥540N/mm2
              T.S ≥640N/mm2
                Elogation % ≥15%
               Effectwaarde ≥27 J (- 20℃, 10*10*55)
          Identiteitskaart-Hardheid HB180-210
            Identiteitskaart-Ruwheid  ≤1.2um
         OD Ruwheid ≤3.2um
                Concentriciteit ≤2%
                Ovality ≤0.2mm
                Eerlijkheid ≤0.3mm/m
              N.D.T ET+UT

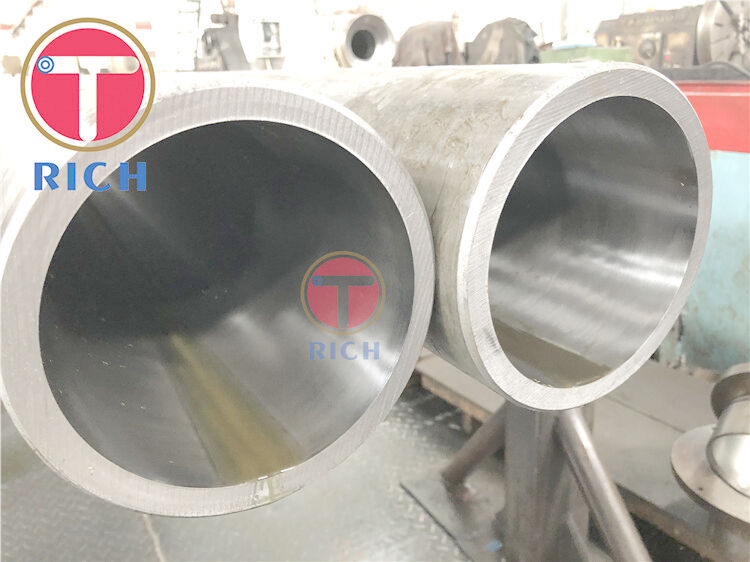

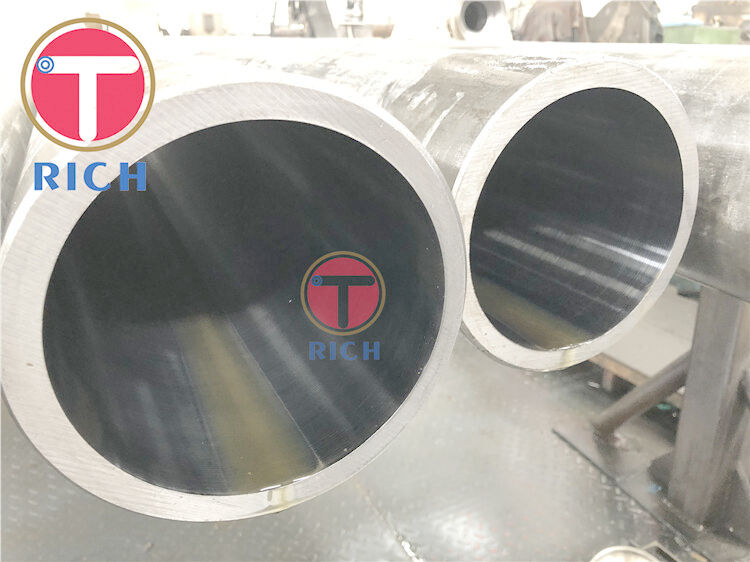

Duurzame Telescopische Cilinder Koudgetrokken Naadloze Buis OD 120400mm 0 Duurzame Telescopische Cilinder Koudgetrokken Naadloze Buis OD 120400mm 1
