Norm: | ASTM B163 | Materiaal: | N06025 |
---|---|---|---|
OD: | 12.076.2mm | gewicht: | 0.512.0mm |
lengte: | maximum 12M | Toepassing: | Warmtewisselaar |
Hoog licht: | N06025 de Buis van de Nikkellegering,WT1.5mm de Buis van de Nikkellegering,N06025 de pijp van de Nikkellegering |

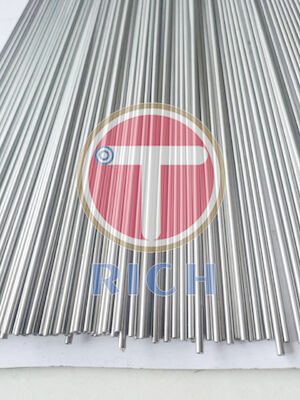

De buis van de nikkellegering voor warmtewisselaar
Snel detail:
Grootte:
OD: 1/2 „-3“ 12.076.2mm
GEWICHT: 0,02“ - 0,5“ 0.512.0mm
Lengte: Voet 105ft 32 32mt
Pijp: NPS1/2“ +-6“ 21.34168.3mm
GEWICHT: Sch10-Sch80
GEWICHT: 2.1112.7mm
Lengte 45ft 14mt
Productiemethode: Koudgetrokken en Koudgewalst
Toepassing: Warmtewisselaar, Kernenergie, Mechanische ingenieur.
Materiaal: Inconel 600 Inconel 625, INCOLOY 617, INCOLOY 800/H
Chemische samenstelling:
Chemische Vereisten
Element | N06025 | N06045 | N06600 | N06601 | N06603 | N06617 | N06674 | N06690 | N06693 | N06696 |
Ni | rest | 45.0min | 72.0min | 58.0-63.0 | rest | 44.5min | rest | 58.0min | rest | rest |
Cr | 24.0-26.0 | 26.0-29.0 | 14.0-17.0 | 21.0-25.0 | 24.0-26.0 | 20.0-24.0 | 21.5-24.5 | 27.0-31.0 | 27.0-31.0 | 28.0-32.0 |
Ijzer | 8.0-11.0 | 21.0-25.0 | 6.0-10.0 | rest | 8.0-11.0 | 3.0max | 20.0-27.0 | 7.0-11.0 | 2.5-6.0 | 2.0-6.0 |
Mn | 0.15max | 1.0max | 1.0max | 1.5max | 0.15max | 1.0max | 1.50max | 0.5max | 1.0max | 1.0max |
Mo | … | … | … | … | … | 8.0-10.0 | … | … | … | 1.0-3.0 |
Co | … | … | … | … | … | 10.0-15.0 | … | … | … | … |
Al | 1.8-2.4 | … | … | 1.0-1.7 | 2.4-3.0 | 0.8-1.5 | … | … | 2.5-4.0 | … |
C | 0.15-0.25 | 0.05-0.12 | 0.15max | 0.10max | 0.20-0.40 | 0.05-0.15 | 0.10max | 0.05max | 0.15max | 0.15max |
Cu | 0.1max | 0.3max | 0.5max | 1.0max | 0.50max | 0.5max | … | 0.5max | 0.5max | 1.5-3.0 |
B | … | … | … | … | … | 0.006max | 0.0005-0.006 | … | … | … |
Si | 0.5max | 2.5-3.0 | 0.5max | 0.5max | 0.50max | 1.0max | 1.0max | 0.5max | 0.5max | 1.0-2.5 |
S | 0.010max | 0.010max | 0.015max | 0.015max | 0.010max | 0.015max | 0.015max | 0.015max | 0.01max | 0.010max |
Ti | 0.1-0.2 | … | … | … | 0.1-0.25 | 0.6max | 0.05-0.20 | … | 1.0max | 1.0max |
Nb | … | … | … | … | … | … | 0.10-0.35 | … | 0.5-2.5 | … |
P | 0.020max | 0.020max | … | … | 0.020max | … | 0.030max | … | … | … |
Zr | 0.01-0.10 | … | … | … | 0.01-0.10 | … | … | … | … | … |
Y | 0.05-0.12 | … | … | … | 0.01-0.15 | … | … | … | … | … |
Ce | … | 0.03-0.09 | … | … | … | … | … | … | … | … |
N | … | … | … | … | … | … | 0.02max | … | … | … |
W | … | … | … | … | … | … | 6.0-8.0 | … | … | … |
