Materiaal: | SUS304TB SUS304LTB SUS 310STB SUS316TB SUS316LTB | Norm: | SA213 SA213M A213 SA312 JIS G3464 |
---|---|---|---|
OD: | 6325mm | GEWICHT: | 0.520mm |
Lengte: | maximum 12m | Certificaat: | PED ASME AD2000 CCS ABS GL LR BV KR NK |
Hoog licht: | het buizenstelsel van het precisieroestvrije staal,Naadloze Koolstofstaalbuis |

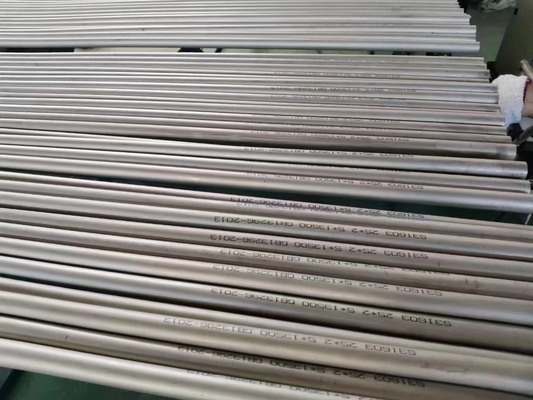

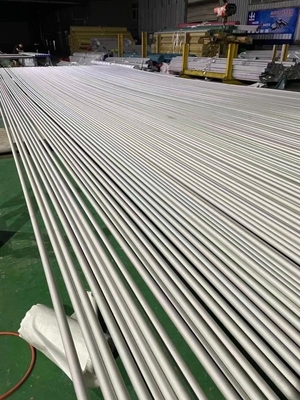

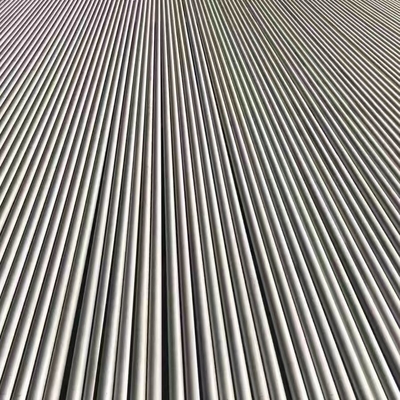

JIS 3463 gebruik van het staalbuizen van SUS304TB SUS304LTB SUS 310STB SUS316TB SUS316LTB het naadloze voor boiler en warmtewisselaar
Materiaal: SUS304TB SUS304LTB SUS316TB SUS316LTB SUS317TB SUS317LTB SUS310TB SUS310STB SUS321TB SUS321HTB SUS347TB
Opbrengststerkte ≥175Mpa of ≥206Mpa
Treksterkte ≥481Mpa of ≥521Mpa
Verlenging ≥27% of ≥35%
Het afvlakken van test H=1.09t/(0.09+t/D)
Het flakkeren van test 60° 12%D
Korrelgrootte JIS G051
De hydrostatische test P=2Rt/D het kan door Niet-destructieve gebrekopsporing worden plaatsgevonden
Niet-destructieve test: ECT
JIS G 3463 Austenitic Roestvrij staal voor Boiler en Warmtewisselaarbuizen
Naadloze staalbuizen voor drukdoeleinden
Opbrengsmethode: naadloos
Leveringsvoorwaarde: Warm afgewerkte gebeëindigde koude
Staalkwaliteit: 314 316 317 347
Relevante norm: KS D 3577 ASTM EEN 268 A249 A271 A632 DIN 17455 BS3059 JIS G 0320 JIS G 0321 J
STAALKWALITEIT EN CHEMISCHE SAMENSTELLINGEN | ||||||||||
Seelrang | Klasse | C | Si | Mn | P | S | Ni | Cr | Mo | enz. |
SUS 304TB | Austenitic | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - |
SUS 304HTB | 0.04-0.10 | 0.75max | 2.00max | 0.040max | 0.030max | 8.00-11.00 | 18.00-20.00 | - | - | |
SUS 304LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 18.00-20.00 | - | - | |
SUS310TB | 0.15max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - | - | |
SUS310STB | 0.08max | 1.50max | 2.00max | 0.040max | 0.030max | 19.00-22.00 | 24.00-26.00 | - | ||
SUS 316TB | 0.08max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
SUS 316HTB | 0.40-0.10 | 0.75max | 2.00max | 0.030max | 0.030max | 11.00-14.00 | 16.00-18.00 | 2.00-3.00 | - | |
SUS316LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 12.00-16.00 | 16.00-18.00 | 2.00-3.00 | - | |
SUS316TiTB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | Ti: 5*C %max | |
SUS317TB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
SUS317LTB | 0.030max | 1.00max | 2.00max | 0.040max | 0.030max | 11.00-15.00 | 18.00-20.00 | 3.00-4.00 | - | |
SUS347TB | 0.080max | 1.00max | 2.00max | 0.040max | 0.030max | 9.00-13.00 | 17.00-19.00 | - | Nb: 10*C %max | |
SUS347HTB | 0.40-0.10 | 1.00max | 2.00max | 0.030max | 0.030max | 9.00-13.00 | 17.00-20.00 | - | Nb: 8*C %-1,00 |
STAALKWALITEIT EN MECHANISCHE EIGENSCHAPPEN | |||||
Seelrang | Trektrength Mpa min |
Bewijsstrees Mpa min |
Verlenging % | ||
OD<10mm | OD≥10mm OD<20mm | OD ≥20mm | |||
No.11 teststuk | No.11 teststuk | No.11 teststuk No.12 teststuk |
|||
SUS 304TB | 520 | 205 | 27 | 30 | 35 |
SUS 304HTB | 520 | 205 | 27 | 30 | 35 |
SUS 304LTB | 480 | 175 | 27 | 30 | 35 |
SUS310TB | 520 | 205 | 27 | 30 | 35 |
SUS310STB | 520 | 205 | 27 | 30 | 35 |
SUS 316TB | 520 | 205 | 27 | 30 | 35 |
SUS 316HTB | 520 | 205 | 27 | 30 | 35 |
SUS316LTB | 480 | 175 | 27 | 30 | 35 |
SUS316TiTB | 520 | 205 | 27 | 30 | 35 |
SUS317TB | 520 | 205 | 27 | 30 | 35 |
SUS317LTB | 480 | 175 | 27 | 30 | 35 |
SUS347TB | 520 | 205 | 27 | 30 | 35 |
SUS347HTB | 520 | 205 | 27 | 30 | 35 |
OD afdeling mm |
Tolerantie op OD eenheid: mm
|
||
Warm afgewerkte naadloze buis | De koude beëindigde naadloze buis | Automatische boog gelaste buislaser gelaste buis en elektrische weerstand gelaste buis | |
Onder 40 |
+0.4 -0.8 |
±0.25 | ±0.25 |
40 of over aan en excl. 50 | |||
50 of over aan en excl. 60 | |||
60 of over aan en excl. 80 | ±0.30 | ±0.30 | |
80 of over aan en excl. 100 | ±0.40 | ±0.40 | |
100 of over aan en excl. 120 |
+0.4 -1.2 |
+0.40 -0.60 |
+0.40 -0.60 |
120 of over aan en excl. 160 |
+0.4 -0.80 |
+0.40 -0.80 |
|
160 of over aan en excl. 200 |
+0.4 -1.8 |
+0.4 -1.2 |
+0.4 -1.20 |
200 of over |
+0.4 -2.4 |
+0.40 -1.60 |
+0.40 -1.60 |
Opmerkingen:
1. De tolerantie op OD van ferritic koude beëindigde naadloze buis, automatische boog gelaste buis, en de elektrische weerstand gelaste buis zal ±0.10mm voor OD van onder 25mm, ±0.15mm voor OD van 25mm of over aan en exclusief 40mm, en ±0.20mm voor OD van 40mm of over aan en exclusief 50mm zijn
2. De koper kan de tolerantie op OD van koude gebeëindigde naadloze buis, automatische boog gelaste buis, laser gelaste buis, en elektrische weerstand gelaste buis van onder 40mm in OD als ±0.20mm specificeren
Tolerantie op muurdikte | Afdeling van methode van vervaardiging | Warm afgewerkte naadloze steeltube | De koude beëindigde naadloze steeltube | Elektrische gelaste weerstand steeltube | ||||
Afdeling van muurdikte | Afdeling van buitendiameter (mm) | onder 100 | 100 of over | onder 40 | 40 of over | onder 40 | 40 of over | |
Tolerantie op muurdikte % | onder 2 | - | - | +0.4mm 0 |
+22 0 |
+0.4mm 0 |
+22 0 |
|
2 of over aan en excl. 2.4 | +40 0 |
- | +20 0 |
+20 0 |
||||
2.4 of over aan en excl. 3.8 | +35 0 |
+35 0 |
||||||
3.8 of over aan en excl. 4.6 | +33 0 |
+33 0 |
||||||
4.6 of over | +28 0 |
+28 0 |
||||||
Tolerantie op muurdikte | - | binnen 22,8 van muurdikte | - | - |
Afdeling | Lengtetolerantie | |
OD onder 50 | onder 7m |
+7mm 0 |
boven 7m | Voeg 3mm aan plus zijtolerantie bovengenoemd voor een vouw van elke 3mm of zijn fractie in lengte toe, nochtans zal de maximumwaarde 15mm zijn | |
OD boven 50 | onder 7m |
+10mm 0 |
boven 7m | Voeg 3mm aan plus zijtolerantie bovengenoemd voor een vouw van elke 3mm of zijn fractie in lengte toe, nochtans zal de maximumwaarde 15mm zijn |
Hardheid: HRB 90max
